Schematic Capture : Various Convenient Functions
Replace
In Placement mode, Replace can be performed by overlapping.
Objects that can be Replaced
Pins
Ports
Power Supplies
Symbols
Components
Before Replacing | Overlap and Place in Placement Mode |
After Replacing |
![]() |
![]() |
![]() |
Replace |

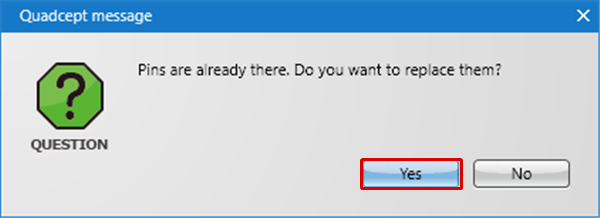

The following will explain how to Replace by overlapping in Placement mode. |
|
![]() |
|
![]() |
|
![]() |
When a wire is connected, the wire connection status will be maintained.
