Closed figures that consist of Lines or Arcs can be converted to Filled Polygons/Planes/Cutouts/Keep Out Areas/Design Rule Areas.
It can be used for import using Import DXF/DWG designed using mechanical system CAD (3DCAD), and Convert to Keep Out Area, etc.

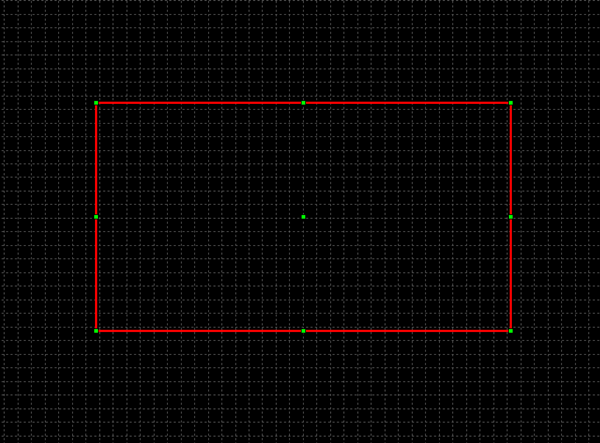

Line
|

|

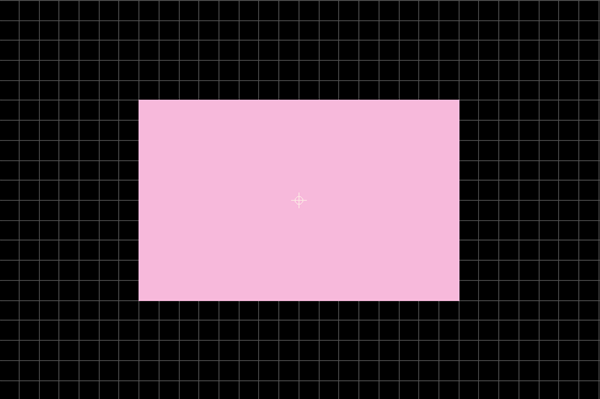

Filled Polygon
|

|
Plane
|

|
Cutout
|

|
Keep Out Area
|

|
Design Rule Area
|

|
(1) |

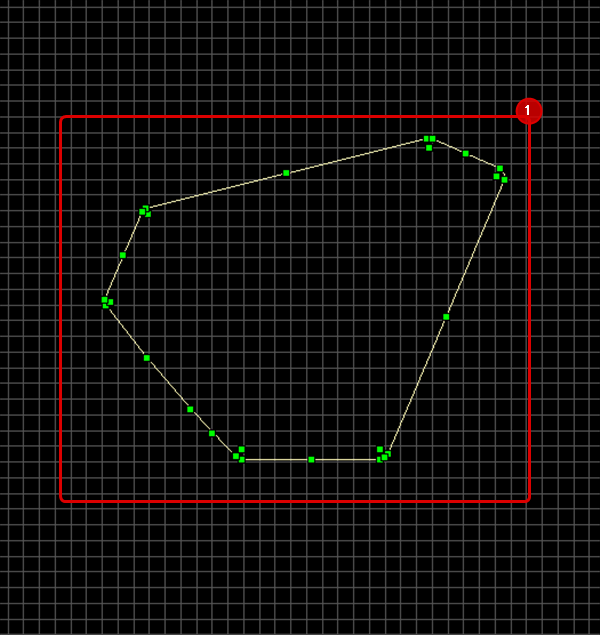

Select the line that you want to Convert to Filled Object. |
|
Connected lines and arcs can be selected using Spread Selecting.
* Shortcut: Shift + C |
|
 |
(2) |

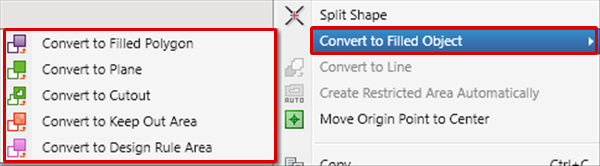

Right click
=> [Convert to Filled Object]
=> [Convert to Filled Polygon].
(* Select the Conversion Menu for the object that you want to convert.) |
|
 |
(3) |

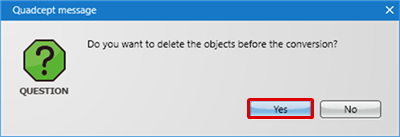

A confirmation message stating, "Do you want to delete the objects before the conversion?" will be displayed.
Click either "Yes" or "No".
"Yes": Objects will be deleted before the conversion.
"No": Objects will not be deleted before the conversion. It becomes two; the object before conversion and after conversion.
|
|
 |
|

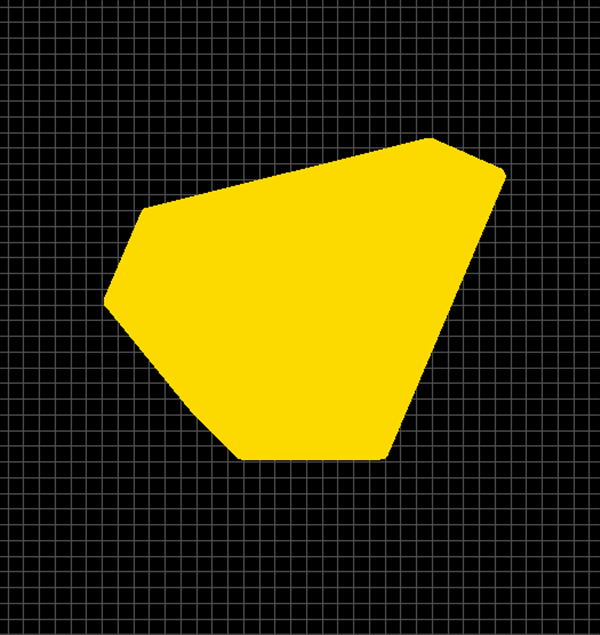

The selected Line is converted to a Filled Object. |
|
 |
