Export a list of Component Coordinates for mounting components. Component Coordinates, angles, placement surfaces, and Component Names will be shown.
Component Coordinate Export Example

The following will explain how to export Component Coordinate files. |

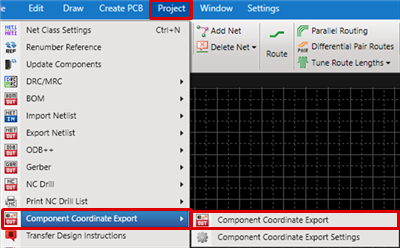

(1) |
[Project]
=> [Component Coordinate Export]
=> [Component Coordinate Export]
=> The "Open" screen will appear. |
|
 |
(2) |
Input a File Name, and then click "Save". |
|
 |
(3) |
The exported file will open automatically. |
|
 |
For more details about Export Gerber Settings, refer to "Component Coordinate" in PCB Settings .
