Create Restricted Area Automatically is a function that automatically creates a Keep Out Area by setting the Offset for the Board Outline.
This is convenient when you want to set a Keep Out Area at the edge of a board.
Targets for Board Outlines where a Keep Out Area can be created automatically are closed drawings that consist of Lines, Rectangles, and Arcs.

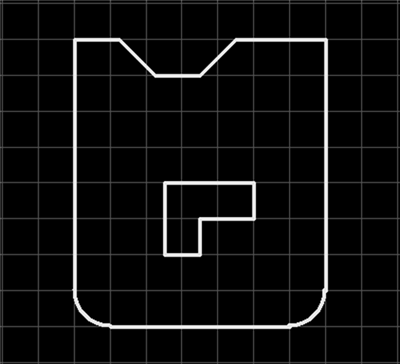

Before Creating a Keep Out Area |

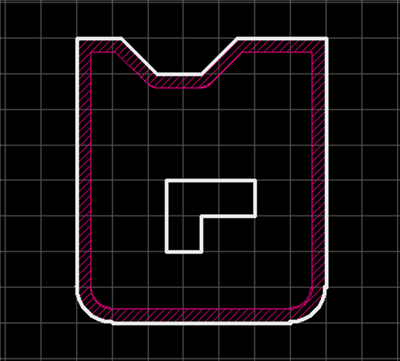

After Creating a Keep Out Area |

|

|
The following will explain how to automatically create a Keep Out Area by setting the Offset for the Board Outline. |
(1) |

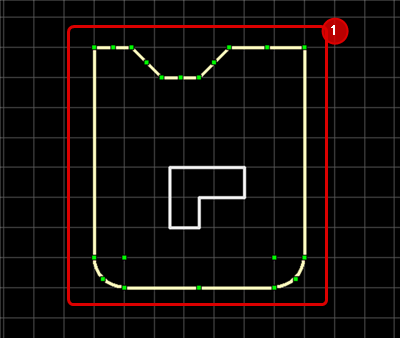

Select the Board Outline Line where you want to add the Keep Out Area. |
|
 |
(2) |
Right click
Click => [ Auto Create Restricted Area]. |
|
 |
(3) |
Configure each setting and then click "OK". |
|
* For the inner side of a line, specify a positive number (such as "1.0"), and for the outer side of a line, specify a negative number (such as "-1.0"). |
|
 |
|
A Keep Out Area with the set Offset will be created automatically. |
|
 |
To set a Keep Out Area to the outer side from the edge of a hole on the board, input a negative number. Ex.) -0.5
