With Quadcept, PollEx ASCII format files can be exported from the PCB design screen.
By using a PollEx ASCII format file, it is possible to collaborate with "PollEx" drawing check software.
* PollEx is a registered trademark of the POLLIWOG Corporation.
The following will explain how to export a PollEx ASCII file.
The following will explain how to export a PollEx ASCII file from a PCB document.
|
(1) |

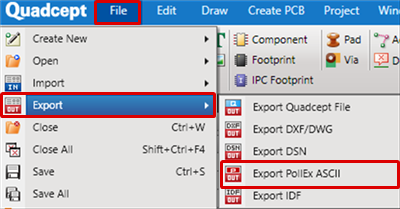

Select [File]
=> [Export]
=> [PollEx ASCII].
=> The "Location" screen will open. |
|
 |
(2) |
Input a File Name, and then click "Save". |
|
 |
There is also a method for direct collaboration from Run PollEx DFM (Manufacturing Check) and Run PollEx DFE (Electrical Characteristics Check).
